Shapes Item
ThermalLabel SDK supports preset shapes like rectangles, circles, lines, and ellipses that can be placed on the label surface.
Rectangle Item
A Rectangle Item – represented by Neodynamic.SDK.Printing.RectangleShapeItem class – lets you draw rectangle shapes on the label. RectangleShapeItem objects are created by specifying some basic properties such as Width, Height, Fill, StrokeThickness, Roundness, etc.

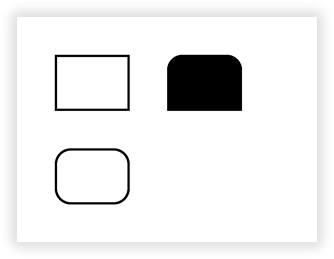

RectangleShapeItem Sample
By using RectangleShapeItem objects you can draw rectangles as well as rounded rectangles. The following figure is a sample label featuring rectangle shapes with different settings.
VB
'Define a ThermalLabel object and set unit to inch and label size
Dim tLabel As New ThermalLabel(UnitType.Inch, 4, 3)
tLabel.GapLength = 0.2
'Define some RectangleShapeItem objects
Dim r1 As New RectangleShapeItem(0.5, 0.5, 1, 0.75)
r1.StrokeThickness = 0.03
'With rounded corners
Dim r2 As New RectangleShapeItem(0.5, 1.75, 1, 0.75)
r2.StrokeThickness = 0.03
r2.CornerRadius = New RectangleCornerRadius(0.2)
'With some rounded corners and black fill
Dim r3 As New RectangleShapeItem(2, 0.5, 1, 0.75)
r3.FillColor = Neodynamic.SDK.Printing.Color.Black
r3.CornerRadius = New RectangleCornerRadius(0.2, 0.2, 0, 0)
'Add items to ThermalLabel object...
tLabel.Items.Add(r1)
tLabel.Items.Add(r2)
tLabel.Items.Add(r3)
'Create a WindowsPrintJob object
Using pj As New WindowsPrintJob()
'Create PrinterSettings object
Dim myPrinter As New PrinterSettings()
myPrinter.Communication.CommunicationType = CommunicationType.USB
myPrinter.Dpi = 203
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL
myPrinter.PrinterName = "Zebra TLP2844-Z"
'Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter
'Print ThermalLabel object...
pj.Print(tLabel)
End Using
CS
//Define a ThermalLabel object and set unit to inch and label size
ThermalLabel tLabel = new ThermalLabel(UnitType.Inch, 4, 3);
tLabel.GapLength = 0.2;
//Define some RectangleShapeItem objects
RectangleShapeItem r1 = new RectangleShapeItem(0.5, 0.5, 1, 0.75);
r1.StrokeThickness = 0.03;
//With rounded corners
RectangleShapeItem r2 = new RectangleShapeItem(0.5, 1.75, 1, 0.75);
r2.StrokeThickness = 0.03;
r2.CornerRadius = new RectangleCornerRadius(0.2);
//With some rounded corners and black fill
RectangleShapeItem r3 = new RectangleShapeItem(2, 0.5, 1, 0.75);
r3.FillColor = Neodynamic.SDK.Printing.Color.Black;
r3.CornerRadius = new RectangleCornerRadius(0.2, 0.2, 0, 0);
//Add items to ThermalLabel object...
tLabel.Items.Add(r1);
tLabel.Items.Add(r2);
tLabel.Items.Add(r3);
//Create a WindowsPrintJob object
using (WindowsPrintJob pj = new WindowsPrintJob())
{
//Create PrinterSettings object
PrinterSettings myPrinter = new PrinterSettings();
myPrinter.Communication.CommunicationType = CommunicationType.USB;
myPrinter.Dpi = 203;
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL;
myPrinter.PrinterName = "Zebra TLP2844-Z";
//Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter;
//Print ThermalLabel object...
pj.Print(tLabel);
}
Line Item
A Line Item – represented by Neodynamic.SDK.Printing.LineShapeItem class – lets you draw lines on the label. LineShapeItem objects are created by specifying some basic properties such as Width, Height, Orientation, etc.

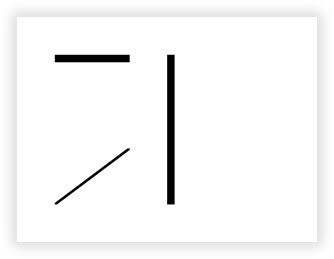

LineShapeItem Sample
By using LineShapeItem objects you can draw lines at any orientation i.e. horizontal, vertical, diagonals up and down. The following figure is a sample label featuring some line shapes with different settings.
VB
'Define a ThermalLabel object and set unit to inch and label size
Dim tLabel As New ThermalLabel(UnitType.Inch, 4, 3)
tLabel.GapLength = 0.2
'Define some LineShapeItem objects
'A simple horizontal line
Dim l1 As New LineShapeItem(0.5, 0.5, 1, 0.1)
l1.StrokeThickness = 0.1
'A diagonal up line
Dim l2 As New LineShapeItem(0.5, 1.75, 1, 0.75)
l2.StrokeThickness = 0.03
l2.Orientation = LineOrientation.DiagonalUp
'A simple vertical line
Dim l3 As New LineShapeItem(2, 0.5, 0.1, 2)
l3.StrokeThickness = 0.1
l3.Orientation = LineOrientation.Vertical
'Add items to ThermalLabel object...
tLabel.Items.Add(l1)
tLabel.Items.Add(l2)
tLabel.Items.Add(l3)
'Create a WindowsPrintJob object
Using pj As New WindowsPrintJob()
'Create PrinterSettings object
Dim myPrinter As New PrinterSettings()
myPrinter.Communication.CommunicationType = CommunicationType.USB
myPrinter.Dpi = 203
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL
myPrinter.PrinterName = "Zebra TLP2844-Z"
'Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter
'Print ThermalLabel object...
pj.Print(tLabel)
End Using
CS
//Define a ThermalLabel object and set unit to inch and label size
ThermalLabel tLabel = new ThermalLabel(UnitType.Inch, 4, 3);
tLabel.GapLength = 0.2;
//Define some LineShapeItem objects
//A simple horizontal line
LineShapeItem l1 = new LineShapeItem(0.5, 0.5, 1, 0.1);
l1.StrokeThickness = 0.1;
//A diagonal up line
LineShapeItem l2 = new LineShapeItem(0.5, 1.75, 1, 0.75);
l2.StrokeThickness = 0.03;
l2.Orientation = LineOrientation.DiagonalUp;
//A simple vertical line
LineShapeItem l3 = new LineShapeItem(2, 0.5, 0.1, 2);
l3.StrokeThickness = 0.1;
l3.Orientation = LineOrientation.Vertical;
//Add items to ThermalLabel object...
tLabel.Items.Add(l1);
tLabel.Items.Add(l2);
tLabel.Items.Add(l3);
//Create a WindowsPrintJob object
using (WindowsPrintJob pj = new WindowsPrintJob())
{
//Create PrinterSettings object
PrinterSettings myPrinter = new PrinterSettings();
myPrinter.Communication.CommunicationType = CommunicationType.USB;
myPrinter.Dpi = 203;
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL;
myPrinter.PrinterName = "Zebra TLP2844-Z";
//Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter;
//Print ThermalLabel object...
pj.Print(tLabel);
}
Circle and Ellipse Items
Circle and Ellipse items – represented by Neodynamic.SDK.Printing.CircleShapeItem and Neodynamic.SDK.Printing.EllipseShapeItem classes respectively– let you draw circle and ellipse/oval shapes on the label. Both kinds of objects are created by specifying some basic properties such as Width, Height, Fill, StrokeThickness, etc.

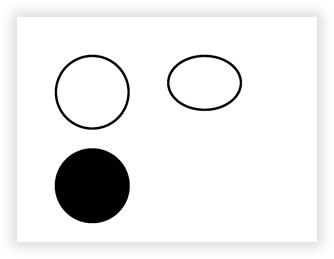

CircleShapeItem and EllipseShapeItem Sample
By using CircleShapeItem and EllipseShapeItem objects you can draw circle, ellipse and oval shapes. The following figure is a sample label featuring such shapes.
VB
'Define a ThermalLabel object and set unit to inch and label size
Dim tLabel As New ThermalLabel(UnitType.Inch, 4, 3)
tLabel.GapLength = 0.2
'Define a CircleShapeItem object
Dim c1 As New CircleShapeItem(0.5, 0.5, 1)
c1.StrokeThickness = 0.03
'Define a CircleShapeItem object with black fill
Dim c2 As New CircleShapeItem(0.5, 1.75, 1)
c2.FillColor = Neodynamic.SDK.Printing.Color.Black
'Define an EllipseShapeItem object
Dim e1 As New EllipseShapeItem(2, 0.5, 1, 0.75)
e1.StrokeThickness = 0.03
'Add items to ThermalLabel object...
tLabel.Items.Add(c1)
tLabel.Items.Add(c2)
tLabel.Items.Add(e1)
'Create a WindowsPrintJob object
Using pj As New WindowsPrintJob()
'Create PrinterSettings object
Dim myPrinter As New PrinterSettings()
myPrinter.Communication.CommunicationType = CommunicationType.USB
myPrinter.Dpi = 203
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL
myPrinter.PrinterName = "Zebra TLP2844-Z"
'Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter
'Print ThermalLabel object...
pj.Print(tLabel)
End Using
CS
//Define a ThermalLabel object and set unit to inch and label size
ThermalLabel tLabel = new ThermalLabel(UnitType.Inch, 4, 3);
tLabel.GapLength = 0.2;
//Define a CircleShapeItem object
CircleShapeItem c1 = new CircleShapeItem(0.5, 0.5, 1);
c1.StrokeThickness = 0.03;
//Define a CircleShapeItem object with black fill
CircleShapeItem c2 = new CircleShapeItem(0.5, 1.75, 1);
c2.FillColor = Neodynamic.SDK.Printing.Color.Black;
//Define an EllipseShapeItem object
EllipseShapeItem e1 = new EllipseShapeItem(2, 0.5, 1, 0.75);
e1.StrokeThickness = 0.03;
//Add items to ThermalLabel object...
tLabel.Items.Add(c1);
tLabel.Items.Add(c2);
tLabel.Items.Add(e1);
//Create a WindowsPrintJob object
using (WindowsPrintJob pj = new WindowsPrintJob())
{
//Create PrinterSettings object
PrinterSettings myPrinter = new PrinterSettings();
myPrinter.Communication.CommunicationType = CommunicationType.USB;
myPrinter.Dpi = 203;
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL;
myPrinter.PrinterName = "Zebra TLP2844-Z";
//Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter;
//Print ThermalLabel object...
pj.Print(tLabel);
}
Table Item
A Table Item – represented by Neodynamic.SDK.Printing.TableShapeItem class – lets you draw table or grid shapes on the label. TableShapeItem objects are created by specifying some basic properties such as Width, Height, Columns, Rows, Fill, StrokeThickness, CornerRadious, etc.
You can add as many columns and rows as needed through the Columns and Rows collection properties.
A column is represented by the Neodynamic.SDK.Printing.TableColumn class. If the Column's Width property is zero, then it will auto-sized.
A row is represented by the Neodynamic.SDK.Printing.TableRow class. If the Row's Height property is zero, then it will auto-sized.
TableShapeItem Samples

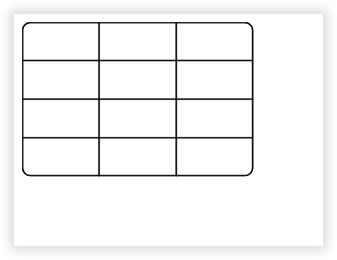

A TableShapeItem featuring 3 cols x 4 rows (both autosized) with rounded corners.
VB
'Define a ThermalLabel object and set unit to inch and label size
Dim tLabel As New ThermalLabel(UnitType.Inch, 4, 3)
tLabel.GapLength = 0.2
'Define a TableShapeItem objects
Dim tableItem As New TableShapeItem(0.1, 0.1, 3, 2)
' set stroke
tableItem.StrokeThickness = 0.02
' rounded corners
tableItem.CornerRadius = New RectangleCornerRadius(0.1)
' add 3 cols
tableItem.Columns.Add(New TableColumn())
tableItem.Columns.Add(New TableColumn())
tableItem.Columns.Add(New TableColumn())
' add 2 rows
tableItem.Rows.Add(New TableRow())
tableItem.Rows.Add(New TableRow())
tableItem.Rows.Add(New TableRow())
tableItem.Rows.Add(New TableRow())
'Add items to ThermalLabel object...
tLabel.Items.Add(tableItem)
'Create a WindowsPrintJob object
Using pj As New WindowsPrintJob()
'Create PrinterSettings object
Dim myPrinter As New PrinterSettings()
myPrinter.Communication.CommunicationType = CommunicationType.USB
myPrinter.Dpi = 203
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL
myPrinter.PrinterName = "Zebra TLP2844-Z"
'Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter
'Print ThermalLabel object...
pj.Print(tLabel)
End Using
CS
//Define a ThermalLabel object and set unit to inch and label size
ThermalLabel tLabel = new ThermalLabel(UnitType.Inch, 4, 3);
tLabel.GapLength = 0.2;
// Define a TableShapeItem objects
TableShapeItem tableItem = new TableShapeItem(0.1, 0.1, 3, 2);
// set stroke
tableItem.StrokeThickness = 0.02;
// rounded corners
tableItem.CornerRadius = new RectangleCornerRadius(0.1);
// add 3 cols
tableItem.Columns.Add(new TableColumn());
tableItem.Columns.Add(new TableColumn());
tableItem.Columns.Add(new TableColumn());
// add 2 rows
tableItem.Rows.Add(new TableRow());
tableItem.Rows.Add(new TableRow());
tableItem.Rows.Add(new TableRow());
tableItem.Rows.Add(new TableRow());
//Add items to ThermalLabel object...
tLabel.Items.Add(tableItem);
//Create a WindowsPrintJob object
using (WindowsPrintJob pj = new WindowsPrintJob())
{
//Create PrinterSettings object
PrinterSettings myPrinter = new PrinterSettings();
myPrinter.Communication.CommunicationType = CommunicationType.USB;
myPrinter.Dpi = 203;
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL;
myPrinter.PrinterName = "Zebra TLP2844-Z";
//Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter;
//Print ThermalLabel object...
pj.Print(tLabel);
}

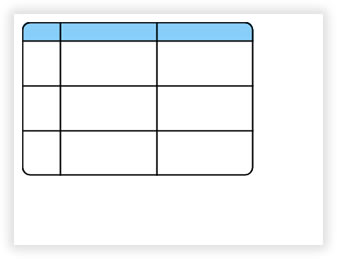

A TableShapeItem featuring 3 cols x 4 rows with fixed column and row size and custom fill color.
VB
'Define a ThermalLabel object and set unit to inch and label size
Dim tLabel As New ThermalLabel(UnitType.Inch, 4, 3)
tLabel.GapLength = 0.2
'Define a TableShapeItem objects
Dim tableItem As New TableShapeItem(0.1, 0.1, 3, 2)
' set stroke
tableItem.StrokeThickness = 0.02
' rounded corners
tableItem.CornerRadius = New RectangleCornerRadius(0.1)
' add 3 cols
tableItem.Columns.Add(New TableColumn With { Width = 0.5 }) ' col with fixed size
tableItem.Columns.Add(New TableColumn())
tableItem.Columns.Add(New TableColumn())
' add 2 rows
tableItem.Rows.Add(New TableRow With { Height = 0.25, FillColorHex="#87cefa" }) ' row with fixed size and fill color
tableItem.Rows.Add(New TableRow())
tableItem.Rows.Add(New TableRow())
tableItem.Rows.Add(New TableRow())
'Add items to ThermalLabel object...
tLabel.Items.Add(tableItem)
'Create a WindowsPrintJob object
Using pj As New WindowsPrintJob()
'Create PrinterSettings object
Dim myPrinter As New PrinterSettings()
myPrinter.Communication.CommunicationType = CommunicationType.USB
myPrinter.Dpi = 203
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL
myPrinter.PrinterName = "Zebra TLP2844-Z"
'Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter
'Print ThermalLabel object...
pj.Print(tLabel)
End Using
CS
//Define a ThermalLabel object and set unit to inch and label size
ThermalLabel tLabel = new ThermalLabel(UnitType.Inch, 4, 3);
tLabel.GapLength = 0.2;
// Define a TableShapeItem objects
TableShapeItem tableItem = new TableShapeItem(0.1, 0.1, 3, 2);
// set stroke
tableItem.StrokeThickness = 0.02;
// rounded corners
tableItem.CornerRadius = new RectangleCornerRadius(0.1);
// add 3 cols
tableItem.Columns.Add(new TableColumn() { Width = 0.5 }); // col with fixed size
tableItem.Columns.Add(new TableColumn());
tableItem.Columns.Add(new TableColumn());
// add 2 rows
tableItem.Rows.Add(new TableRow() { Height = 0.25, FillColorHex="#87cefa" }); // row with fixed size and fill color
tableItem.Rows.Add(new TableRow());
tableItem.Rows.Add(new TableRow());
tableItem.Rows.Add(new TableRow());
//Add items to ThermalLabel object...
tLabel.Items.Add(tableItem);
//Create a WindowsPrintJob object
using (WindowsPrintJob pj = new WindowsPrintJob())
{
//Create PrinterSettings object
PrinterSettings myPrinter = new PrinterSettings();
myPrinter.Communication.CommunicationType = CommunicationType.USB;
myPrinter.Dpi = 203;
myPrinter.ProgrammingLanguage = ProgrammingLanguage.ZPL;
myPrinter.PrinterName = "Zebra TLP2844-Z";
//Set PrinterSettings to WindowsPrintJob
pj.PrinterSettings = myPrinter;
//Print ThermalLabel object...
pj.Print(tLabel);
}
